MX FUEL™ HANDHELD CORE DRILL

152mm / 6″ HANDHELD CORE DRILL

MXF DCD150

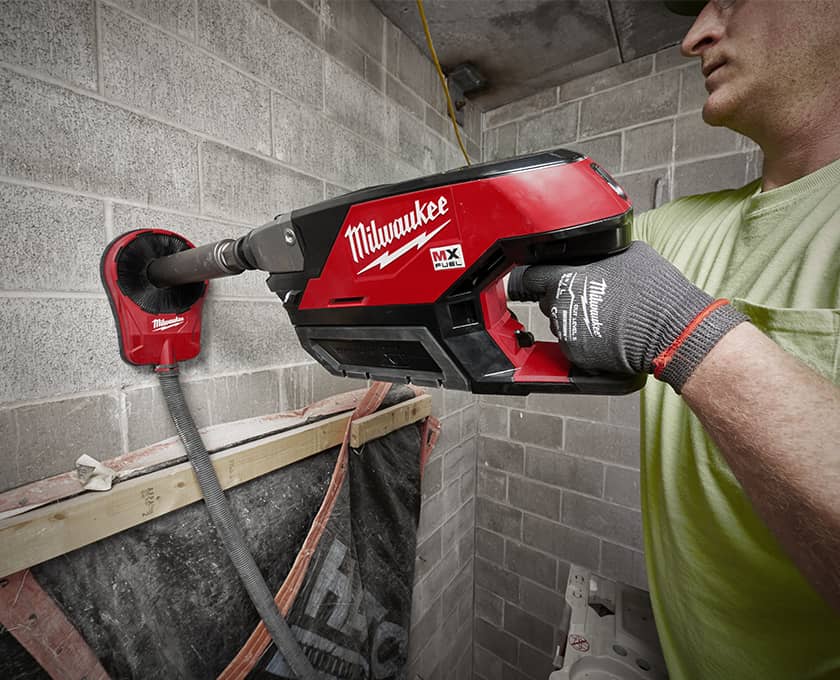

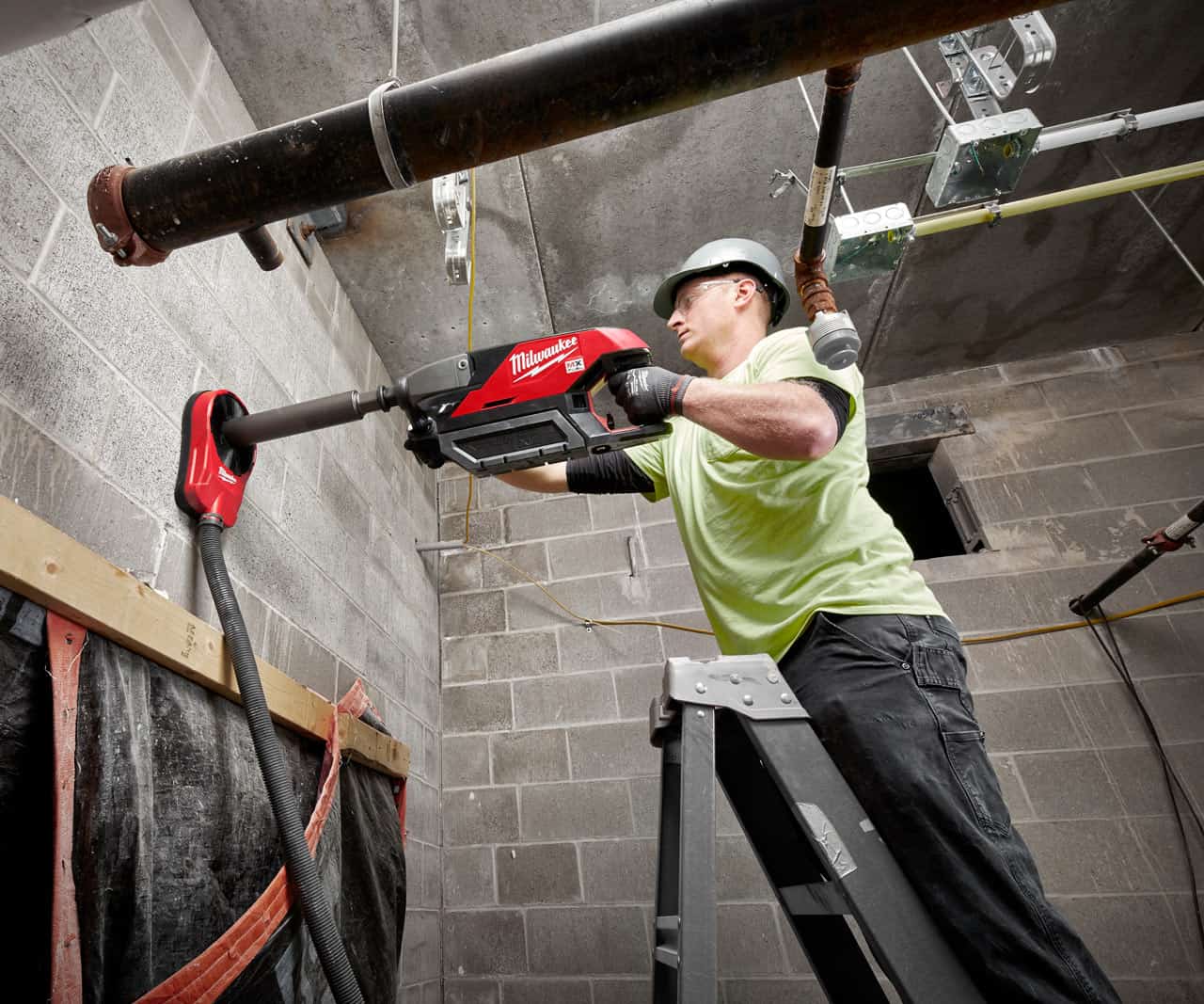

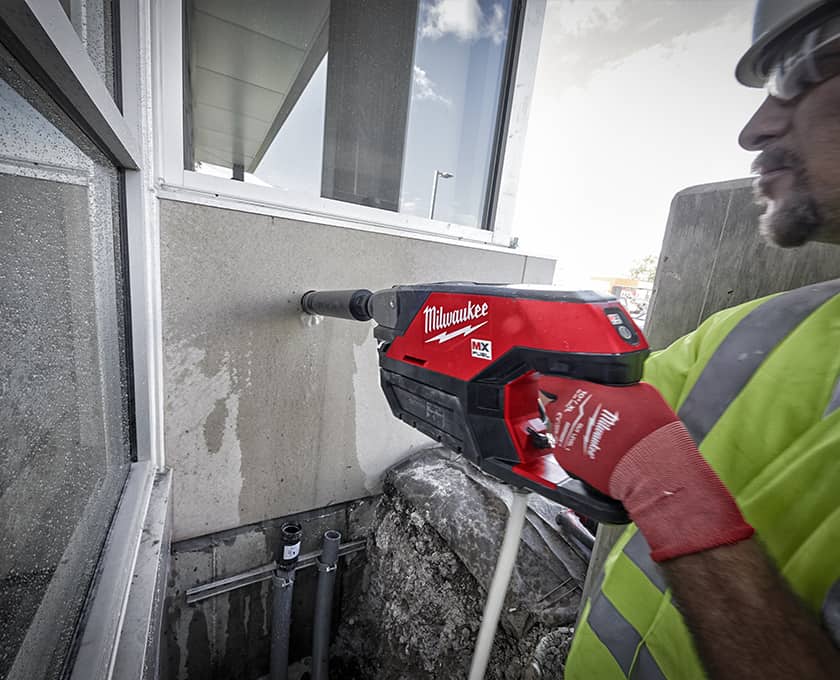

SAFER HANDHELD CORING
POWER TO CORE 152 mm (6') HOLES
EASIEST CORING ANYWHERE

ACCESSORIES

CORE DRILL STAND

MXF DR255TV

SAFER HANDHELD CORINGT

MX FUEL™ HANDHELD CORE DRILL

CORE WITH MORE CONFIDENCE

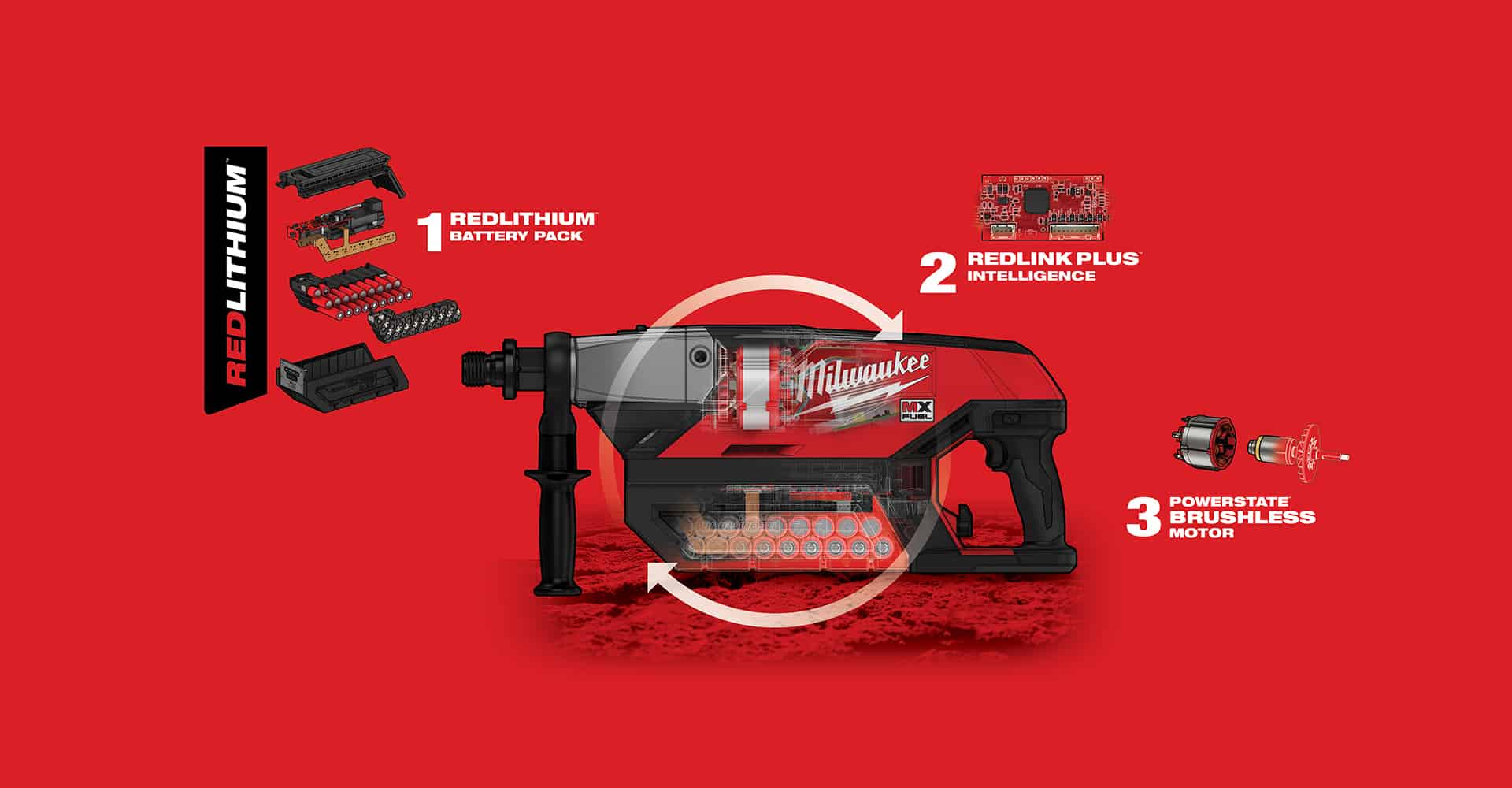

MX FUEL™ TECHNOLOGY


SPECIFICATION



AUTOSTOP™ & Patented Clutch

A patented clutch and AUTOSTOP™ technology delivers a safer handheld coring experience by providing maximum control and preventing over-rotation in case the machine gets bound up.

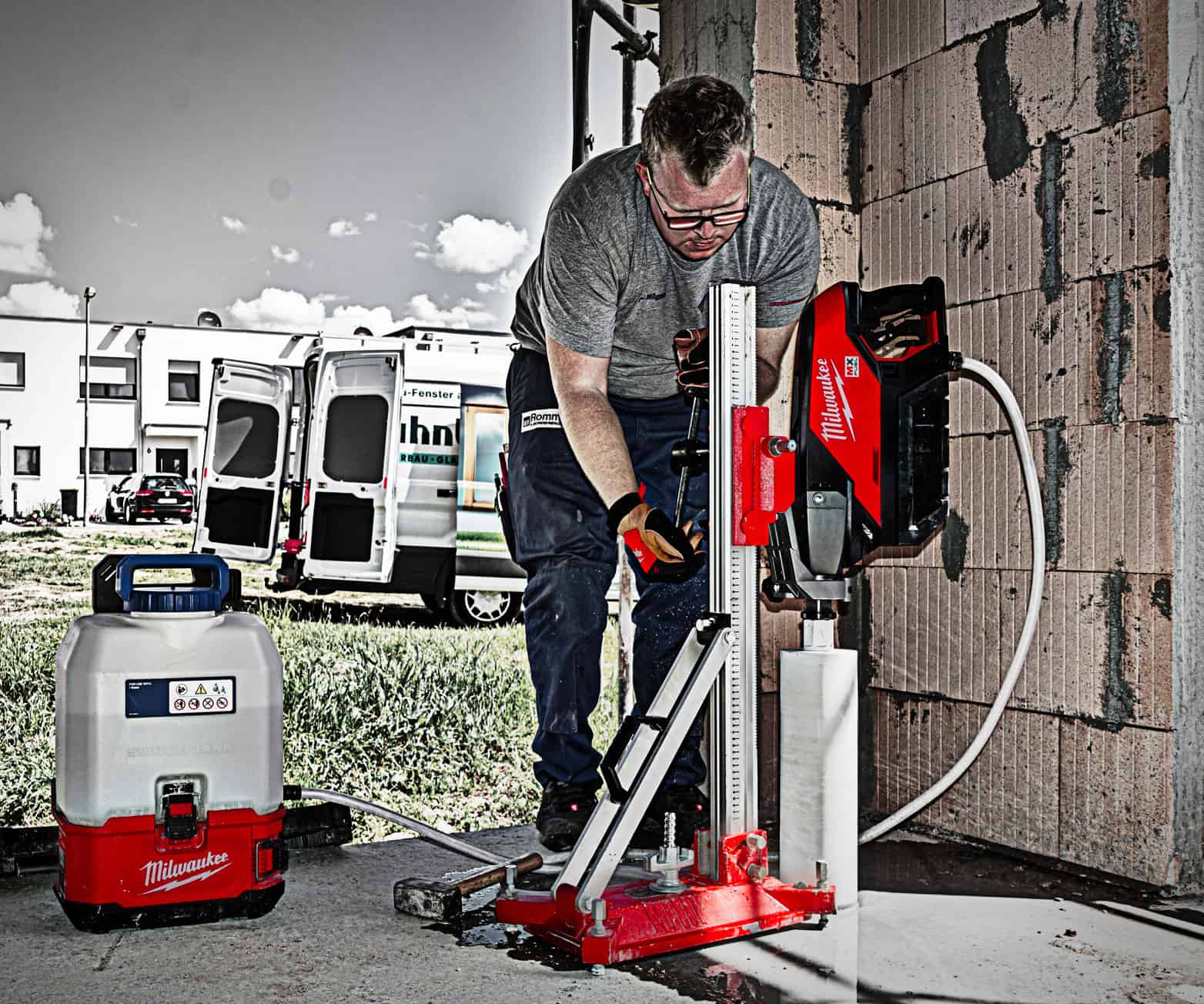

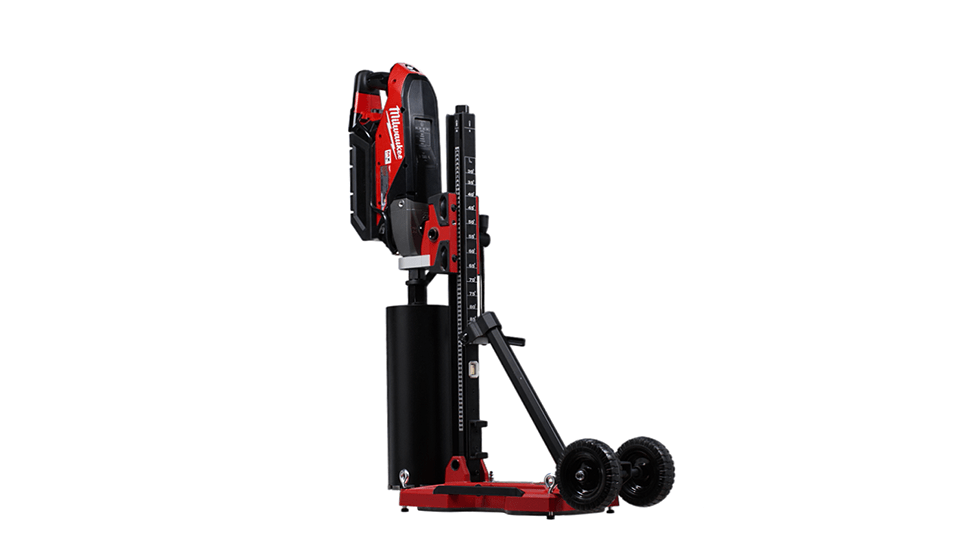

Compact Stand – Sold Separately

The Compact Stand turns the handheld core drill into a portable, lightweight, rig-mounted solution for more versatile coring Up to 152mm (6”) holes.Easy-to-adjust angled mast settings, and the option to anchor or vacuum provide a versatile solution for coring on site.

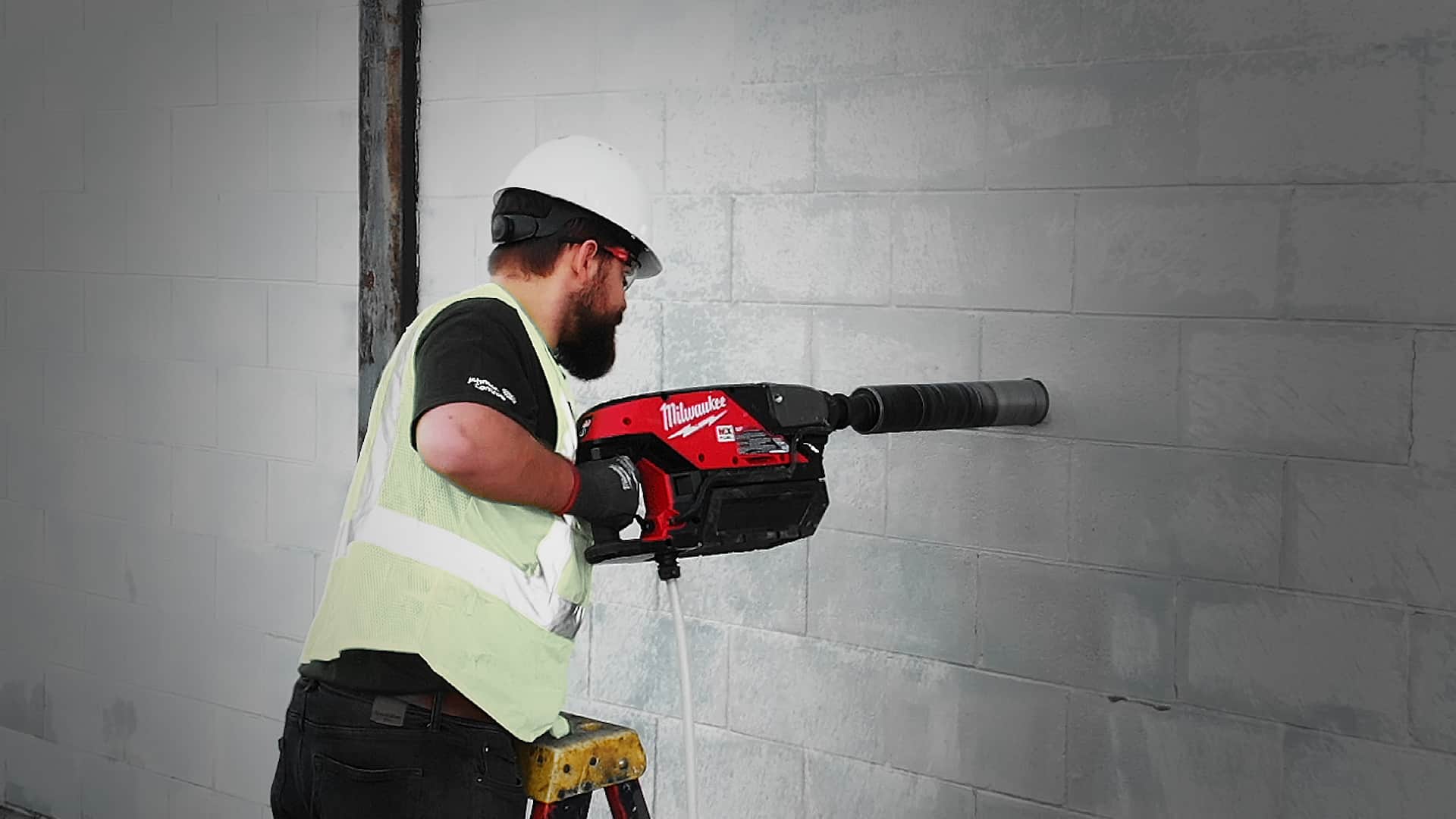

Pressure Gauge & LED Level

An Integrated Pressure Gauge helps provide the most efficient drilling pressure to maximize productivity and runtime. The LED Level ensures easy, accurate holes handheld.

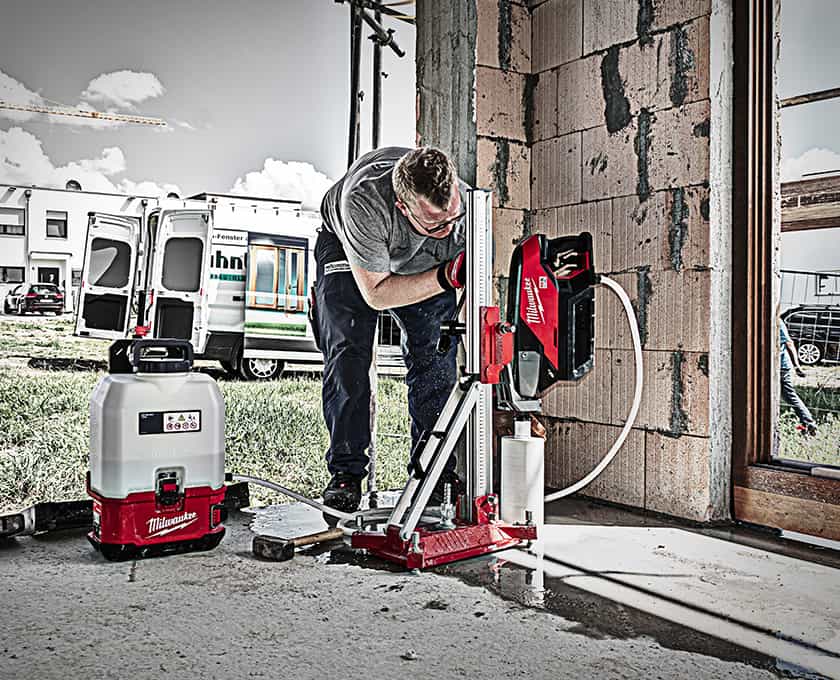

Onboard Water Connection

An onboard water connection allows you to core in both dry and wet applications. A universal quick connect hose ensures simple and effective wet drilling in the toughest applications.





BATTERY TYPE
REDLITHIUM™-ION
BATTERY SYSTEM
MX FUEL™
BIT CAPACITY
152 mm (6″)

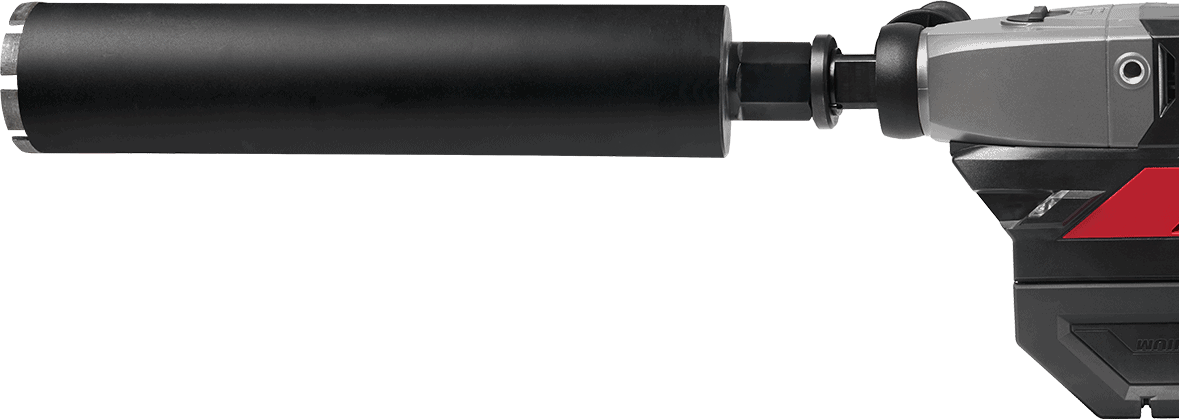

SPINDLE SIZES
1-¼”-7 UNC & ½” G
RPMS LOW / HIGH
790/1550
WET DRY
Yes
LENGTH
54.8 cm
WIDTH
12.2 cm
HEIGHT
23.6 cm
WEIGHT (MXFCP203 / MXFXC406)
10.3 / 12.4 kg
PUSH BUTTON ACTIVATION
Yes
DOWNLOAD
MXF-DCD150-sell-sheet.pdf
INCLUDES
MXF DCD150-0C0
MXF DCD150-301C MXF DCD150-301C
MX FUEL™ 152 MM / 6″ HANDHELD CORE DRILL 1 1 1
Hard Case with Wheels 1 1 1
Quick Connect Collar 1 1 1
A-Rod Adaptor 1 1 1
Trigger Lock-On 1 1 1
MX FUEL™ CHARGER (MXFC) 0 1 1
No of Batteries 0 (Bare Version) 1 x CP203 2 x CP203

EASIEST CORING ANYWHERE




POWER TO CORE 152 mm (6″) HOLES IN REINFORCED CONCRETE


RUN-TIME

The CP203 Battery recharges in 55 Minutes. The XC406 Battery recharges in 90 Minutes

9 X 76.2 MM (3″) HOLES IN BLOCK WITH CP BATTERY
5 X 76.2 MM (3″) HOLES IN 152 MM (6″) CONCRETE WITH CP BATTERY
18 X 76.2 MM (3″) HOLES IN BLOCK WITH XC BATTERY
